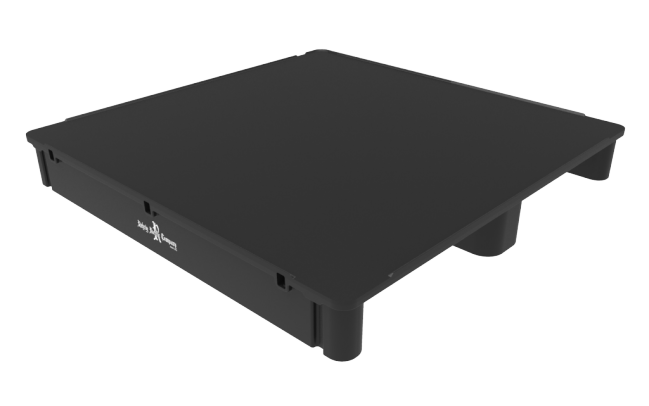

40 x 40 Narrow Stringer Dairy Pallet
Overview
The Narrow Stringer Dairy Pallet is rugged and lightweight, making it easier to handle than comparable wood or other plastic pallets. It's designed for the storage, handling, and shipping of dairy cases and products. The non-porous, cleanable, solid deck makes this pallet an optimal solution for sanitary environments.
Product Specifications
Product Details
Narrow Stringer Specifications | IN/LB | MM/KG |
---|---|---|
Overall Fork Pocket Width (W1) | 34.0 | 864 |
Individual Fork Pocket Width (W2) | 14.5 | 368 |
Outer Stringer Width (W3) | 2.5 | 63.5 |
Fork Pocket Height (H1) | 3.75 | 95 |
Weight (R) | 42.0 | 19.0 |
Weight (NR) | 34.0 | 15.4 |
Decoration Areas | WIDTH (IN) | HEIGHT (IN) |
---|---|---|
Brand, Barcode or RFID Area (B1) | 6.0 | 2.0 |
Pallet Specifications | IN/LB | MM/KG |
---|---|---|
MM/KG | 40.0 | 1,016 |
Width (W) | 40.0 | 1,016 |
Height (H) | 5.0 | 127 |
Static Load Rating (R) | 30,000 | 13,600 |
Static Load Rating (NR) | 10,000 | 4,536 |
Dynamic Load Rating (R) | 4,000 | 1,800 |
Dynamic Load Rating (NR) | 2,500 | 1,134 |
Maximum Edge Rackable Load (R) | 3,000 | 1,361 |
Maximum Edge Rackable Load (NR) | Not Edge Rackable | |
53' Trailer Quantity | 750 |
- High-pressure injection molded plastic pallets made from UV stabilized high impact co- polymer PP resin that will not absorb moisture or bacteria. The non-porous, cleanable, solid deck makes this pallet an optimal solution for sanitary environments.
- Rehrig’s 40 x 40 Pallet is designed for storage, handling, and shipping of dairy cases and products.
- Roughened top deck reduces slippage and helps keep loads in place while maximizing surface area.
- Design is ideal for stack loading, conveying systems, distribution, and cold storage.
- Both rugged and lightweight, the Rehrig Dairy Pallet is easier to handle than comparable wood or other plastic pallets.
- High-pressure injection molding allows Rehrig Pacific designers to strategically vary wall thickness to achieve lighter, yet stronger, plastic pallets when compared to other molding processes.
Options
- Colors: Choice of standard or FDA approved colors
- Decoration: Hot-stamp branded logos
- Edge lip: Molded-in straight or beveled perimeter deck lip
- Stringers: 2.5" or 3.8" outside stringers
- Reinforcement: Offered with or without steel reinforcements
- Top Deck Surface: Light, heavy, or no scuffing
- RFID compatible, works with VisionTM Software solution
Alternative Material for Sustainability
- PCR - RPC Circular Plastic Economy, Automotive Bumpers, Cart Seats
- PIR - RPC Mfg Scrap
- Up to 30% Black
- Up to 10% Color
