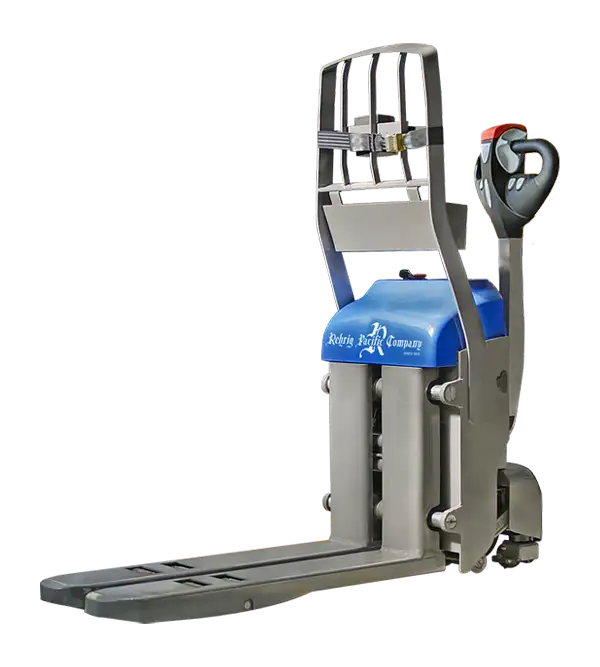

Duo Lift
The Duo Lift is the industry’s first adjustable tine (fork) material handling battery-operated pallet jack system, designed to seamlessly expand and retract for both small and large format stores. This advanced electric pallet jack features robust, standard components ideal for transporting full and half pallets from trailers to stores or coolers. Its compact chassis easily navigates tight aisles and coolers, while the zero-turn radius and upright controls ensure exceptional maneuverability. The near-silent AC Drive System and lightweight design (including battery) provide smooth and efficient operation. Fully powered for drive, lift, lower, expansion, and retraction, it’s perfect for C-stores and any environment needing reliable, quiet, and agile pallet handling.
| Specifications | IN/LB | MM/KG |
|---|---|---|
| Length - Short Tine (L1) | 60 | 1524 |
| Length - Long Tine (L2) | 65 | 1651 |
| Chassis Width (W) | 20 | 508 |
| Narrow Tine Span (T1) | 14.6 | 370 |
| Wide Tine Span (T2) | 23.6 | 600 |
| Height (H) | 58 | 1473 |
| Weight - Short Tine | 590 | 267 |
| Weight - Long Tine | 630 | 285 |
| Load Capacity | 4000 | 1800 |
- Industry’s first adjustable tine span system expands and retracts for large and small format stores
- Powerful 48V drive system to handle heavy pallet loads and steep inclines
- Turtle mode to limit the speed for improved control in tight spaces
- Lightweight 30Ah lithium-ion battery easily lasts a full shift with toolless quick swapping when necessary
- 4000lb max load capacity to accommodate Duo half pallets, full size 40”x48” plastic and wood pallets
- Highly maneuverable with a zero-turn radius and ergonomic upright controls
- Compact chassis design to maneuver through narrow store aisles and into coolers

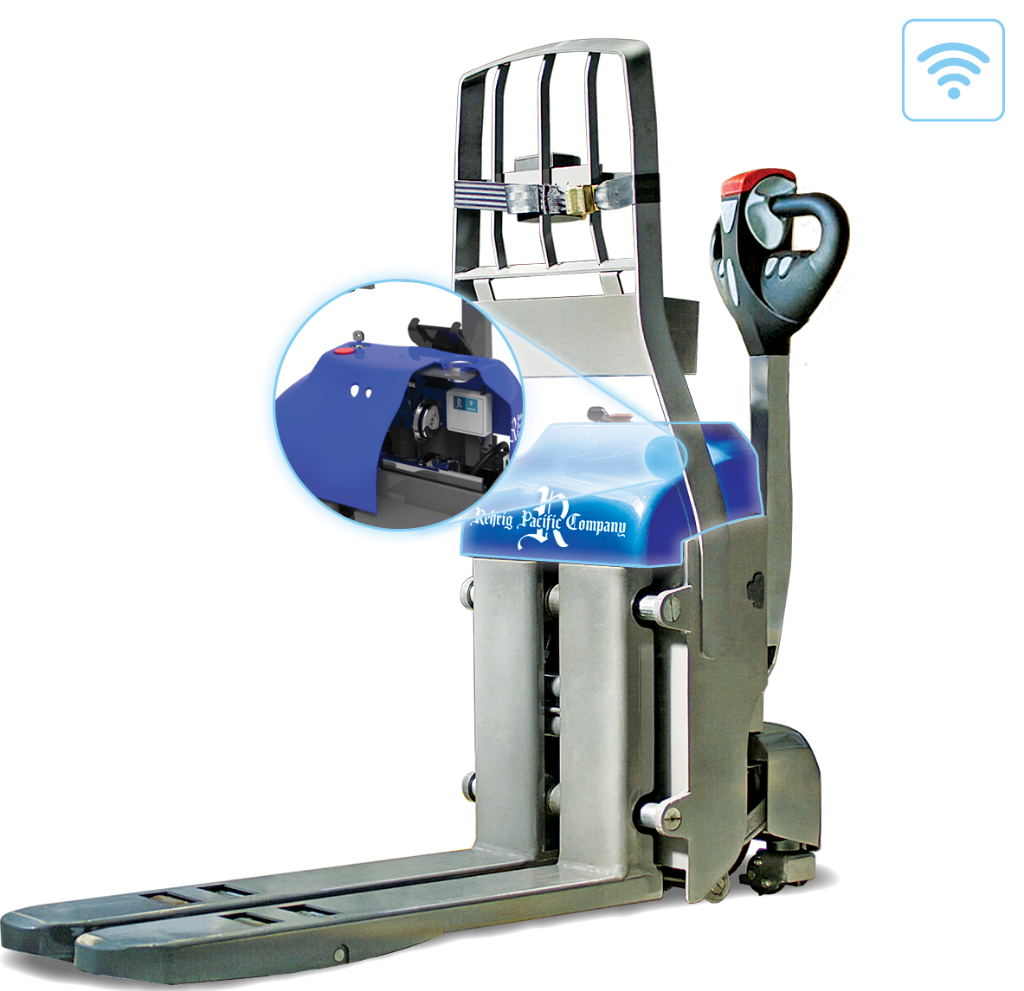

- Smart enablement capability includes RFID reading, pallet asset tracking, GPS location, critical diagnostics, preventative maintenance alerts and more
- Battery fully charges in approximately 3 hours; battery can be charged when installed in the lift or when removed
- Button to disable electromagnetic brake and allow lift to be manually pushed or pulled
- Durable and robust serviceable components for easy maintenance
- Retracting load belt and backrest with E-track slots for securing pallet load
